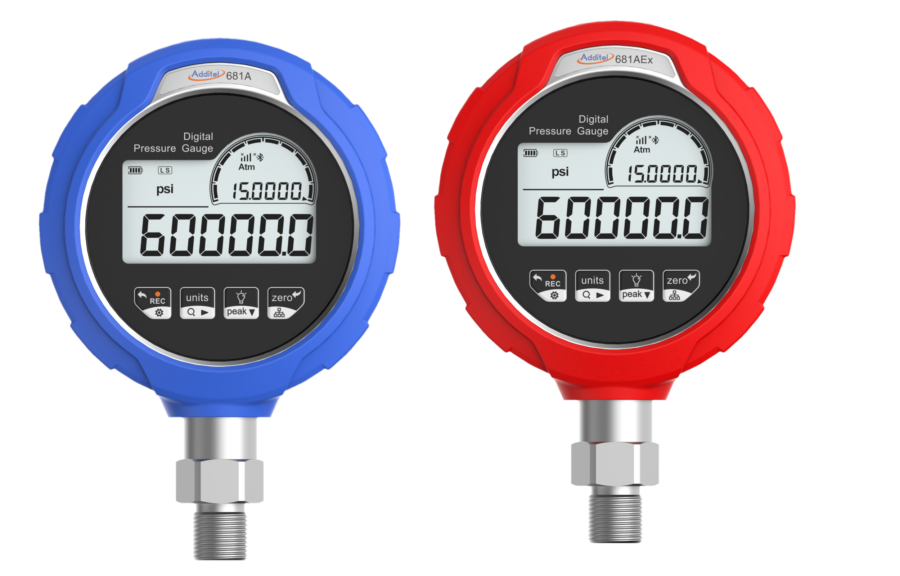

Manomètre numérique

  • Plages de pression jusqu’à 60 000 psi (4 200 bar)
  • Précision de 0,02 % ou 0,05 % FS
  • Mesure la pression relative ou absolue
  • Indication du % de pression avec graphique en forme de bargraphe
  • Précision entièrement compensée en température (-10~50°C)
  • Communication Bluetooth
  • Communication avec l’application mobile Link d’Additel
  • Grand écran facile à lire
  • Version à sécurité intrinsèque (681AEx)
  • Enregistrement de données (jusqu’à 10 000 000 d’enregistrements) en option
  • Classé IP67
Poser une question
Etre rappelé par un conseiller

Les manomètres numériques série 681A d'Additel sont conçus pour devenir vos outils préférés pour une large gamme d'applications de mesure de pression et d'étalonnage. Avec des fonctionnalités telles que l’enregistrement des données et la technologie Bluetooth incluses, vous constaterez que ces manomètres offrent une grande valeur ajoutée à un coût raisonnable. Ces manos  classées IP67 ont été conçus en tenant compte des éléments extérieurs et conviennent parfaitement au travail sur le terrain mais aussi en laboratoire.
Si vous travaillez dans une zone intrinsèquement sensible, consultez nos versions Ex de cet étonnant manomètre numérique pour répondre à ce besoin de sécurité supplémentaire dans les zones sensibles.

Durables

Le modèle ADT681A a été construit avec les meilleurs matériaux pour garantir sa résistance aux éléments. Tout, de la coque extérieure en acier inoxydable à la conception du capteur interne, a été optimisé pour garantir que cet outil vous tiendra informé des lectures de pression à la demande et enregistrées pour les années à venir. L'indice IP67 garantit que les environnements poussiéreux et humides n'entraveront pas la capacité de ces manomètres à fonctionner, tandis que la résistance aux chocs et aux vibrations (5 g de vibration, 10 g de choc) associée aux pièces humides résistantes à la corrosion aident à protéger le fonctionnement interne de ces ADT 681a Additel .

Faciles à utiliser

Les techniciens ont souvent des horaires serrés et des charges de travail lourdes, ce qui ne leur laisse que peu de temps supplémentaire pour corriger les erreurs ou retravailler. L'ADT681A résout ce problème avec des fonctions de boutons et des menus soigneusement conçus, fluides et faciles à utiliser, ce qui permet de gagner un temps précieux. L'écran est clair en plein soleil et le rétroéclairage peut être activé en appuyant sur un seul bouton pour une utilisation dans des situations de faible luminosité. La valeur de pression peut être affichée en gros caractères et peut être lue à quelques mètres de distance, ce qui fait de ce manomètre, l'appareil parfait pour des travaux de mesure, d'étalonnage et de vérification pratiques.

Faciles à maintenir

L'ADT681A est conçu avec des boutons à membrane, ce qui les rend faciles à nettoyer et à entretenir dans le temps, qui peuvent simplement être essuyés pour un nettoyage simple et rapide. Associé à la durée de vie extra longue de la batterie , vous constaterez que l'entretien est minime et peu fréquent.







Pressure / Process Calibration Equipment

Additel 681A



Digital Pressure Gauges



 Pressure ranges to 60,000 psi (4,200 bar)



 0.02%, 0.05% FS or 0.1% RD accuracy



Measures gauge or absolute pressure



% pressure indication with fan-shaped graphic



Fully temperature compensated accuracy (-10~50°C)



Bluetooth communication



Communication with Additel's Link Mobile App



Large easy-to-read display



Intrinsically safe version (681AEx)



Data logging (up to 10,000,000 records)



IP67 rated



OVERVIEW



Additel’s 681A Series Digital Pressure Gauges are designed to be your favorite tool for a wide range of pressure measurement and calibration applications. With features such as datalogging and Bluetooth technology included, you will find these gauges to be high in value at a reasonable cost. These durable IP67 rated gauges have been built with outdoor elements in mind and are the perfect fit for field work as well as in the laboratory. If you are working in an intrinsically sensitive area, look to our Ex-versions of this amazing digital pressure gauge to provide that extra level of safety in sensitive areas.



Durable:



The model ADT681A has been built with the finest materials to ensure that it can hold up the elements. Everything from the stainless steel outer shell to the innermost sensor design have been optimized to ensure that this gauge will keep you informed with on-demand and logged pressure readings for years to come. The IP67 rating ensures that dusty and wet environments won’t hamper this gauges ability to perform while the shock and vibration resistance (5g vibration 10g shock) coupled with the corrosion resistant wetted parts help to protect the inner workings of these durable Additel gauges.



Easy to use:



Technicians often have tight schedules and heavy workloads, which leaves little extra time for correcting mistakes or doing rework. The ADT681A solves this problem with carefully designed button functions and menus that are smooth and easy to use which saves on valuable time. The display is clear in bright sunlight, and the backlight can be turned on with a one-button press for use in low light situations. The pressure value can be displayed in large fonts and can be read from a few meters away, making this gauge the perfect device for no-nonsense measurement, calibration and verification work.



Easy to maintain:



The ADT681A is designed with membrane buttons, making them easy to clean and maintain over time, which can simply be wiped clean for quick and simple cleaning. Coupled with the extra-long battery life of these easy-to-use gauges, you will find that maintenance is minimal and infrequent.





























01 Phone: 714-998-6899 Email: sales@additel.com Corporate Headquarters Salt Lake City Office





Rev # 20240112 2900 Saturn St #B 1364 West State Rd. Suite 101
Brea, CA 92821, USA Pleasant Grove, UT 84062, USA





Pressure / Process Calibration Equipment











































































































02

SPECIFICATIONS



Model ADT681A ADT681AEx
Description Digital Pressure Gauge Intrinsically Safe Digital Pressure Gauge
CE marked
Intrinsic Safety EU: II 1G EX ia IIC T4 Ga T4 at -20~50°C
& CE marked North America: CLASS I, Division 1, Groups A, B, C and D, T4
CLASS I,Zone 0,AEx ia IIC T4 Ga
European Compliance
T4 at -20~50°C
International:EX ia IIC T4 Ga T4 at -20~50°C
681A(Ex)-02: 0.02% of full span
Accuracy 681A(Ex)-05: 0.05% of full span
681A(Ex)-RD: 0% to 20% of range: ± (0.02% of full span)
(For detailed accuracy, please
20% to 110% of range: ± (0.1% of reading)
see pressure range table)
vacuum: ± (0.25% of FS), FS=-14.5psi
Built-in barometer: ± 55 Pa
Gauge Types Gauge pressure, compound pressure, absolute pressure (calculated by gauge pressure and baromatric pressure),
differential pressure and barometric pressure
Multifunction Atmospheric pressure, ambient temperature, peak-peak values (max, min), TARE, leak test, pressure percentage
Fan-shaped section display, time display, data logging status
Wide viewing angle FSTN segment code LCD, three partition design
Display
White backlight, backlight time: ON, 15 seconds, 30 seconds, 45 seconds, 60 seconds, the default is 15 seconds
5~6 digit display can be switched, character height 14.8mm(0.58"), main display + unit display + fan-shaped section
Pa, kPa, MPa, psi, mbar, bar, kgf/cm2, %, mmH2O(4°C), mmHg(0°C), InH2O(4°C), InHg(0°C)
Pressure Units
6 engineering water column units: inH2O(20°C), inH2O(60°F), mmH2O(20°C), mmH2O(15°C), ftH2O(60°F), ftH2O(4°C)
1 custom unit: identified by the USER code, and the conversion coefficient can be set through Additel -Link
Compensated Temperature: 14°F to 122°F (-10°C to 50°C)
Environmental Operating Temperature: -4°F to 122°F (-20°C to 50°C)
Storage Temperature: -40°F to 167°F (-40°C to 75°C)
Humidity: 5%RH~95%RH, no condensing
≤15,000 psi: 1/4NPT male, 1/2NPT male, 1/4BSP male, 1/2BSP male, M20×1.5 male
>15,000 psi: 1/4HP female or 1/4HP male
Pressure Port *1/4HP female: Autoclave F-250-C, 9/16" - 18 UNF-2B
*1/4HP male: Autoclave M-250-C, 9/16" - 18 UNF-2A
Differential Pressure: barb fitting
Other connections available per request
Battery: 3 AA alkaline batteries
Battery life:
Power 1. Super stable mode[1]: 4000 hours (3 reading/s, default), 1000 hours (10 reading/s)
2. Low power mode[2]: 5000 hours (2 reading/s), 9000 hours (1 reading/s), 18000 hours (1 reading/10s)
Power auto-off: 120, 90, 60, 45, 30, 15 minute auto-off options or never
External power: power supply through USB (optional)
Case material: 304 SS; Front panel material: anti-static PET; Rubber boot material (optional): anti-static TPU
Enclosure Wetted parts: 316L SS
Dimension: Ø4.65" x 1.65" depth x 7" height (Ø118 mm x 42 mm depth x 178 mm height)
Weight: 1.5 lbs (0.68 kg)
Protection Level: IP67(against 1 meter water immersion for 30 mins)
Compliance
Vibration: 5 g; Shock Resistance: 10 g
1 meter drop test (without rubber boot)
Data Logging (Optional) Data storage: 10,000,000 records (time and pressure) or 5,000,000 records (time, pressure and temperature)
Rate: user-selectable from 0.1 to 99,999 second intervals
Communication Bluetooth (BLE4.2), USB-C, RS232 *(Do not use the USB-C or RS-232 connector in a hazardous area)
Calibration ISO 17025 Accredited Calibration Certificate with data
Warranty 1 year



Note:



  • The pressure sensor has been powered continuously when the gauge is on, to improve the measurement resolution and reduce the impact of ambient humidity.



  • The pressure sensor will be powered off after each sampling, to improve the continuous working hours.



Phone: 714-998-6899 Email: sales@additel.com Corporate Headquarters Salt Lake City Office
Rev # 20240112 2900 Saturn St #B 1364 West State Rd. Suite 101
Brea, CA 92821, USA Pleasant Grove, UT 84062, USA





Pressure / Process Calibration Equipment

PRESSURE RANGE



Gauge Pressure [1]



P/N Pressure Range Media[3] Annual Accuracy Burst
(psi) (bar) %FS %RD[4] Pressure
V15[2] -15 -1.0 G 0.02 N/A
V15[2] -15 -1.0 G, L 0.05 N/A
GP2 2 0.16 G 0.05 N/A
GP5 5 0.35 G, L 0.05 0.1
GP10 10 0.7 G, L 0.02,0.05 0.1
GP15 15 1.0 G, L 0.02,0.05 0.1
GP30 30 2.0 G, L 0.02,0.05 0.1
GP50 50 3.5 G, L 0.02,0.05 0.1
GP100 100 7.0 G, L 0.02,0.05 0.1
GP150 150 10 G, L 0.02,0.05 0.1
GP300 300 20 G, L 0.02,0.05 0.1
GP500 500 35 G, L 0.02,0.05 0.1
GP600 600 40 G, L 0.02,0.05 0.1
GP1K 1,000 70 G, L 0.02,0.05 0.1
GP1.5K 1,500 100 G, L 0.02,0.05 0.1
GP2K 2,000 140 G, L 0.02,0.05 0.1
GP3K 3,000 200 G, L 0.02,0.05 0.1
GP5K 5,000 350 G, L 0.02,0.05 0.1
GP10K 10,000 700 G, L 0.02,0.05 0.1 1.5×
GP15K 15,000 1,000 G, L 0.05 (0.1) 0.1 1.5×
GP20K 20,000 1,400 G, L 0.05 (0.1) N/A 1.5×
GP25K 25,000 1,600 G, L 0.05 (0.1) N/A 1.5×
GP30K 30,000 2,000 G, L 0.05 (0.1) N/A 1.5×
GP36K 36,000 2,500 G, L 0.05 (0.1) N/A 1.5×
GP40K 40,000 2,800 G, L 0.05 (0.1) N/A 1.35×
GP50K 50,000 3,500 G, L 0.1 (0.2) N/A 1.2×
GP60K 60,000 4,200 G, L 0.1 (0.2) N/A 1.1×



  • Sealed gauge pressure for above 1,000 psi



  • Vacuum range is (-15~0) psi



  • G=Gas, L=Liquid



  • %RD accuracy: 0% to 20% of range: ± (0.02% of full span), 20% to 110% of range: ± (0.1% of reading) vacuum: ± (0.25% of FS), FS=-14.5psi



Barometric Pressure
P/N Pressure Range Media[1] Annual Accuracy Burst
Low High Pressure
BP 60 kPa 110 kPa G ±55Pa
BPH 60 kPa 110 kPa G ±22Pa



[1] G=Gas

















03 Phone: 714-998-6899 Email: sales@additel.com Corporate Headquarters Salt Lake City Office
Rev # 20240112 2900 Saturn St #B 1364 West State Rd. Suite 101
Brea, CA 92821, USA Pleasant Grove, UT 84062, USA





Pressure / Process Calibration Equipment







Compound Pressure
P/N Pressure Range Media[1] Accuracy Burst
(psi) (bar) %FS[3] %RD[4] Pressure
CP2 ±2 ±0.16 G 0.05 N/A
CP5 ±5 ±0.35 G, L[2] 0.02,0.05 0.1
CP10 ±10 ±0.7 G, L[2] 0.02,0.05 0.1
CP15 ±15 ±1.0 G, L[2] 0.02,0.05 0.1
CP30 -15~30 -1~2.0 G, L[2] 0.02,0.05 0.1
CP50 -15~50 -1~3.5 G, L 0.02,0.05 0.1
CP100 -15~100 -1~7.0 G, L 0.02,0.05 0.1
CP150 -15~150 -1~10 G, L 0.02,0.05 0.1
CP300 -15~300 -1~20 G, L 0.02,0.05 0.1
CP500 -15~500 -1~35 G, L 0.02,0.05 N/A
CP600 -15~600 -1~40 G, L 0.02,0.05 N/A
CP1K -15~1000 -1~70 G, L 0.02,0.05 N/A
[1] G=Gas, L=Liquid
[2] 0.02%FS for gas media only
[3] FS = upper limit of range - lower limit of range
[4] %RD accuracy: 0% to 20% of range: ± (0.02% of full span)
20% to 110% of range: ± (0.1% of reading)
vacuum: ± (0.25% of FS), FS=-14.5psi IP67 Rated
Differential Pressure
P/N Pressure Range Media [1] Accuracy Burst Static
Pressure
(inH2O) (mbar) (%FS)[3] Pressure
Range (mbar)
DP1 ±1 ±2.5 G 0.05[2] 50X ±250
DP2 ±2 ±5.0 G 0.05[2] 25X ±250
DP5 ±5 ±10 G 0.05 10X ±250
DP10 ±10 ±25 G 0.05 5X ±250
DP20 ±20 ±50 G 0.05 25X ±2,500
DP30 ±30 ±75 G 0.05 15X ±2,500
DP50 ±50 ±125 G 0.05 10X ±2,500
DP100 ±100 ±250 G 0.02 5X ±2,500
DP150 ±150 ±350 G 0.02 10X ±7,000
DP300 ±300 ±700 G 0.02 5X ±7,000



  • G=gas



  • Calibration interval: 180 days



  • FS = upper limit of range - lower limit of range































04 Phone: 714-998-6899 Email: sales@additel.com Corporate Headquarters Salt Lake City Office





Rev # 20240112 2900 Saturn St #B 1364 West State Rd. Suite 101
Brea, CA 92821, USA Pleasant Grove, UT 84062, USA





Pressure / Process Calibration Equipment

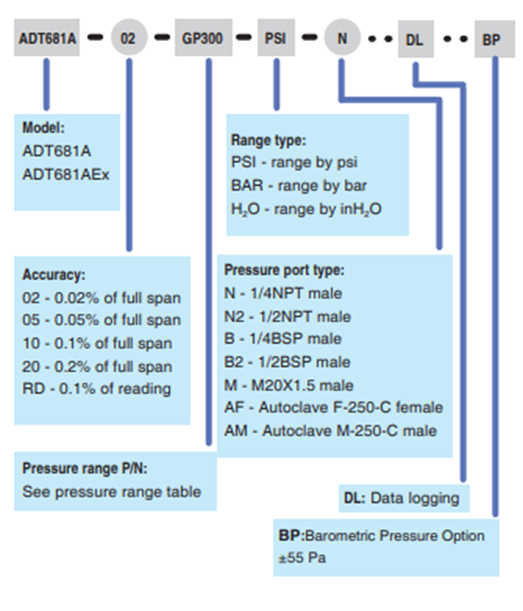

ORDERING INFORMATION



 Model Number





ADT681A 02 GP300 PSI N DL BP
Model: Range type:
ADT681A
PSI - range by psi
ADT681AEx
BAR - range by bar
H2O - range by inH2O



Pressure port type:
Accuracy:
02 - 0.02% of full span N - 1/4NPT male
05 - 0.05% of full span N2 - 1/2NPT male
10 - 0.1% of full span B - 1/4BSP male
20 - 0.2% of full span B2 - 1/2BSP male
RD - 0.1% of reading M - M20X1.5 male
AF - Autoclave F-250-C female
AM - Autoclave M-250-C male
Pressure range P/N:
See pressure range table
DL: Data logging
BP:Barometric Pressure Option
±55 Pa







Accessories Included



Rubber boot



AA alkaline batteries (3 pcs)



USB-C cable



Silicone tube - 1 meter each (2 pcs for DP models only)



ISO 17025 accredited calibration certificate







Optional Accessories



Model number Description
9040 Hanging strap with magnet
9257 Field rain cover
9810 USB power adaptor
9530-BASIC Additel Acal Automated calibration software with asset
management, basic version
Additel Acal Automated calibration software with asset
9530-NET management, network version, Includes server installation
and 1 user license
9502 Additel Log II data logging software (PC)
9050-EXT RS 232 (DB9/M) extension cable, 9 feet
9902 Carrying case for four gauges
9903 Carrying case for one gauge





























































05 Phone: 714-998-6899 Email: sales@additel.com Corporate Headquarters Salt Lake City Office
Rev # 20240112 2900 Saturn St #B 1364 West State Rd. Suite 101
Brea, CA 92821, USA Pleasant Grove, UT 84062, USA
